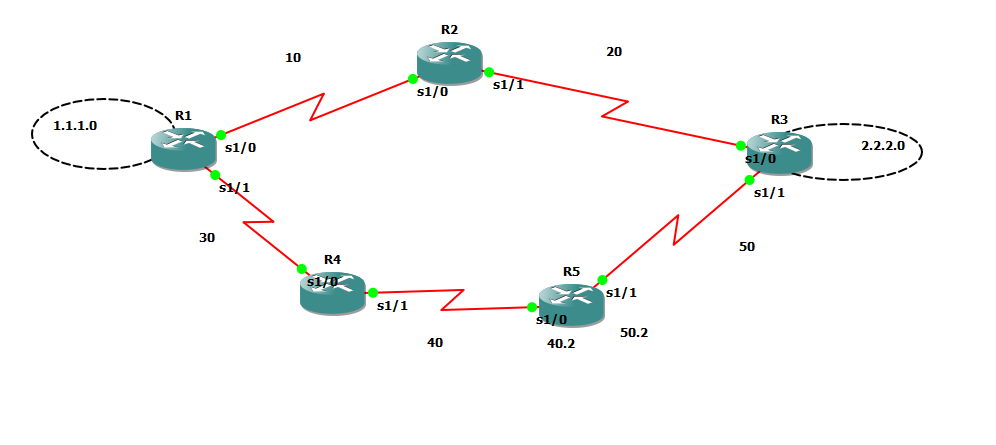

RIP
configuration of R1
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
hostname R1
ip subnet-zero
ip cef
!
interface Loopback0
ip address 1.1.1.1 255.0.0.0
!
interface Serial1/0
bandwidth 128000
ip address 10.0.0.1 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
interface Serial1/1
bandwidth 1000000
ip address 30.0.0.1 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
router rip
offset-list 10 out 16 Serial1/0
network 1.0.0.0
network 10.0.0.0
network 30.0.0.0
!
!
logging alarm informational
access-list 10 permit 1.0.0.0 0.255.255.255
!
!
end
Configuration R2
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R2
!
ip subnet-zero
interface Serial1/0
bandwidth 128000
ip address 10.0.0.2 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
interface Serial1/1
bandwidth 128000
ip address 20.0.0.1 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
router rip
network 10.0.0.0
network 20.0.0.0
!
ip classless
end
Configuration R3
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R3
ip subnet-zero
interface Loopback0
ip address 2.2.2.1 255.0.0.0
!
interface Serial1/0
bandwidth 128000
ip address 20.0.0.2 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
interface Serial1/1
bandwidth 1000000
ip address 50.0.0.1 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
router rip
network 2.0.0.0
network 20.0.0.0
network 50.0.0.0
!
ip classless
end
Configuration R4
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R4
ip subnet-zero
interface Serial1/0
bandwidth 1000000
ip address 30.0.0.2 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
interface Serial1/1
bandwidth 1000000
ip address 40.0.0.1 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
router rip
network 30.0.0.0
network 40.0.0.0
!
ip classless
!
end
Configuration R5
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
hostname R5
ip subnet-zero
interface Serial1/0
bandwidth 1000000
ip address 40.0.0.2 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
interface Serial1/1
bandwidth 1000000
ip address 50.0.0.2 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
router rip
network 40.0.0.0
network 50.0.0.0
!
ip classless
end
By :- Vishal Sharma
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R2
!
ip subnet-zero
interface Serial1/0
bandwidth 128000
ip address 10.0.0.2 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
interface Serial1/1
bandwidth 128000
ip address 20.0.0.1 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
router rip
network 10.0.0.0
network 20.0.0.0
!
ip classless
end
Configuration R3
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R3
ip subnet-zero
interface Loopback0
ip address 2.2.2.1 255.0.0.0
!
interface Serial1/0
bandwidth 128000
ip address 20.0.0.2 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
interface Serial1/1
bandwidth 1000000
ip address 50.0.0.1 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
router rip
network 2.0.0.0
network 20.0.0.0
network 50.0.0.0
!
ip classless
end
Configuration R4
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R4
ip subnet-zero
interface Serial1/0
bandwidth 1000000
ip address 30.0.0.2 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
interface Serial1/1
bandwidth 1000000
ip address 40.0.0.1 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
router rip
network 30.0.0.0
network 40.0.0.0
!
ip classless
!
end
Configuration R5
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
hostname R5
ip subnet-zero
interface Serial1/0
bandwidth 1000000
ip address 40.0.0.2 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
!
interface Serial1/1
bandwidth 1000000
ip address 50.0.0.2 255.0.0.0
serial restart-delay 0
no dce-terminal-timing-enable
router rip
network 40.0.0.0
network 50.0.0.0
!
ip classless
end
By :- Vishal Sharma
